pip install minisom

git clone https://github.com/JustGlowing/minisom.git
python setup.py install

from math import sqrt

from numpy import (array, unravel_index, nditer, linalg, random, subtract, max,
                   power, exp, pi, zeros, ones, arange, outer, meshgrid, dot,
                   logical_and, mean, std, cov, argsort, linspace, transpose,
                   einsum, prod, nan, sqrt, hstack, diff, argmin, multiply)
from numpy import sum as npsum
from numpy.linalg import norm
from collections import defaultdict, Counter
from warnings import warn
from sys import stdout
from time import time
from datetime import timedelta
import pickle
import os

# for unit tests
from numpy.testing import assert_almost_equal, assert_array_almost_equal
from numpy.testing import assert_array_equal
import unittest

"""
    Minimalistic implementation of the Self Organizing Maps (SOM).
"""


def _build_iteration_indexes(data_len, num_iterations,
                             verbose=False, random_generator=None):
    """Returns an iterable with the indexes of the samples
    to pick at each iteration of the training.
    If random_generator is not None, it must be an instance
    of numpy.random.RandomState and it will be used
    to randomize the order of the samples."""
    iterations = arange(num_iterations) % data_len
    if random_generator:
        random_generator.shuffle(iterations)
    if verbose:
        return _wrap_index__in_verbose(iterations)
    else:
        return iterations


def _wrap_index__in_verbose(iterations):
    """Yields the values in iterations printing the status on the stdout."""
    m = len(iterations)
    digits = len(str(m))
    progress = '\r [ {s:{d}} / {m} ] {s:3.0f}% - ? it/s'
    progress = progress.format(m=m, d=digits, s=0)
    stdout.write(progress)
    beginning = time()
    stdout.write(progress)
    for i, it in enumerate(iterations):
        yield it
        sec_left = ((m-i+1) * (time() - beginning)) / (i+1)
        time_left = str(timedelta(seconds=sec_left))[:7]
        progress = '\r [ {i:{d}} / {m} ]'.format(i=i+1, d=digits, m=m)
        progress += ' {p:3.0f}%'.format(p=100*(i+1)/m)
        progress += ' - {time_left} left '.format(time_left=time_left)
        stdout.write(progress)


def fast_norm(x):
    """
    快速计算向量的二范数，速度比linalg.norm快。
    Returns norm-2 of a 1-D numpy array.
    * faster than linalg.norm in case of 1-D arrays (numpy 1.9.2rc1).
    """
    return sqrt(dot(x, x.T))


def asymptotic_decay(learning_rate, t, max_iter):
    """Decay function of the learning process.
    Parameters
    ----------
    learning_rate : float
        current learning rate.
    t : int
        current iteration.
    max_iter : int
        maximum number of iterations for the training.
    """
    return learning_rate / (1+t/(max_iter/2))


class MiniSom(object):
    def __init__(self, x, y, input_len, sigma=1.0, learning_rate=0.5,
                 decay_function=asymptotic_decay,
                 neighborhood_function='gaussian', topology='rectangular',
                 activation_distance='euclidean', random_seed=None):
        """Initializes a Self Organizing Maps.
        A rule of thumb to set the size of the grid for a dimensionality
        reduction task is that it should contain 5*sqrt(N) neurons
        where N is the number of samples in the dataset to analyze.
        E.g. if your dataset has 150 samples, 5*sqrt(150) = 61.23
        hence a map 8-by-8 should perform well.
        Parameters
        ----------
        x : int
            x dimension of the SOM.
        y : int
            y dimension of the SOM.
        input_len : int
            Number of the elements of the vectors in input.
        sigma : float, optional (default=1.0)
            Spread of the neighborhood function, needs to be adequate
            to the dimensions of the map.
            (at the iteration t we have sigma(t) = sigma / (1 + t/T)
            where T is #num_iteration/2)
        learning_rate : initial learning rate
            (at the iteration t we have
            learning_rate(t) = learning_rate / (1 + t/T)
            where T is #num_iteration/2)
        decay_function : function (default=None)
            Function that reduces learning_rate and sigma at each iteration
            the default function is:
                        learning_rate / (1+t/(max_iterarations/2))
            A custom decay function will need to to take in input
            three parameters in the following order:
            1. learning rate
            2. current iteration
            3. maximum number of iterations allowed
            Note that if a lambda function is used to define the decay
            MiniSom will not be pickable anymore.
        neighborhood_function : string, optional (default='gaussian')
            Function that weights the neighborhood of a position in the map.
            Possible values: 'gaussian', 'mexican_hat', 'bubble', 'triangle'
        topology : string, optional (default='rectangular')
            Topology of the map.
            Possible values: 'rectangular', 'hexagonal'
        activation_distance : string, optional (default='euclidean')
            Distance used to activate the map.
            Possible values: 'euclidean', 'cosine', 'manhattan', 'chebyshev'
        random_seed : int, optional (default=None)
            Random seed to use.
        """
        if sigma >= x or sigma >= y:
            warn('Warning: sigma is too high for the dimension of the map.')

        self._random_generator = random.RandomState(random_seed)

        self._learning_rate = learning_rate
        self._sigma = sigma #
        self._input_len = input_len
        # random initialization
        self._weights = self._random_generator.rand(x, y, input_len)*2-1 # 网络权重定义与随机初始化
        self._weights /= linalg.norm(self._weights, axis=-1, keepdims=True)

        self._activation_map = zeros((x, y))
        self._neigx = arange(x)  # 近邻x,是一个列表
        self._neigy = arange(y)  # used to evaluate the neighborhood function

        if topology not in ['hexagonal', 'rectangular']:
            msg = '%s not supported only hexagonal and rectangular available'
            raise ValueError(msg % topology)
        self.topology = topology
        self._xx, self._yy = meshgrid(self._neigx, self._neigy)
        self._xx = self._xx.astype(float)
        self._yy = self._yy.astype(float)
        if topology == 'hexagonal':
            self._xx[::-2] -= 0.5
            if neighborhood_function in ['triangle']:
                warn('triangle neighborhood function does not ' +
                     'take in account hexagonal topology')

        self._decay_function = decay_function

        neig_functions = {'gaussian': self._gaussian,
                          'mexican_hat': self._mexican_hat,
                          'bubble': self._bubble,
                          'triangle': self._triangle}

        if neighborhood_function not in neig_functions:
            msg = '%s not supported. Functions available: %s'
            raise ValueError(msg % (neighborhood_function,
                                    ', '.join(neig_functions.keys())))

        if neighborhood_function in ['triangle',
                                     'bubble'] and (divmod(sigma, 1)[1] != 0
                                                    or sigma < 1):
            warn('sigma should be an integer >=1 when triangle or bubble' +
                 'are used as neighborhood function')

        self.neighborhood = neig_functions[neighborhood_function]

        distance_functions = {'euclidean': self._euclidean_distance,
                              'cosine': self._cosine_distance,
                              'manhattan': self._manhattan_distance,
                              'chebyshev': self._chebyshev_distance}

        if activation_distance not in distance_functions:
            msg = '%s not supported. Distances available: %s'
            raise ValueError(msg % (activation_distance,
                                    ', '.join(distance_functions.keys())))

        self._activation_distance = distance_functions[activation_distance]# 选择不同的距离计算方式，计算x到w的距离

    def get_weights(self):
        """
        获取神经元权重
        Returns the weights of the neural network.
        """
        return self._weights

    def get_euclidean_coordinates(self):
        """Returns the position of the neurons on an euclidean
        plane that reflects the chosen topology in two meshgrids xx and yy.
        Neuron with map coordinates (1, 4) has coordinate (xx[1, 4], yy[1, 4])
        in the euclidean plane.
        Only useful if the topology chosen is not rectangular.
        获取欧几里得平面上，获取神经元的坐标，当拓扑结构为非矩形时才有用
        """
        return self._xx.T, self._yy.T

    def convert_map_to_euclidean(self, xy):
        """Converts map coordinates into euclidean coordinates
        that reflects the chosen topology.
        Only useful if the topology chosen is not rectangular.
        """
        return self._xx.T[xy], self._yy.T[xy]

    def _activate(self, x):
        """
        功能：计算输入样本到所有竞争层神经元的距离，返回一个矩阵。是一个距离矩阵。
        并把距离矩阵存储到self._activation_map中
        Updates matrix activation_map, in this matrix
           the element i,j is the response of the neuron i,j to x.
           """
        self._activation_map = self._activation_distance(x, self._weights)

    def activate(self, x):
        """
        返回x到所有神经元的距离矩阵
        Returns the activation map to x.
        """
        self._activate(x)
        return self._activation_map

    def _gaussian(self, c, sigma):
        """Returns a Gaussian centered in c.
        定义领域"""
        d = 2*pi*sigma*sigma # 高斯函数的方差，当方差为0时
        ax = exp(-power(self._xx-self._xx.T[c], 2)/d)
        ay = exp(-power(self._yy-self._yy.T[c], 2)/d)
        return (ax * ay).T  # the external product gives a matrix 返回一个外积矩阵

    def _mexican_hat(self, c, sigma):
        """Mexican hat centered in c."""
        p = power(self._xx-self._xx.T[c], 2) + power(self._yy-self._yy.T[c], 2)
        d = 2*pi*sigma*sigma
        return (exp(-p/d)*(1-2/d*p)).T

    def _bubble(self, c, sigma):
        """Constant function centered in c with spread sigma.
        sigma should be an odd value.
        """
        ax = logical_and(self._neigx > c[0]-sigma,
                         self._neigx < c[0]+sigma)
        ay = logical_and(self._neigy > c[1]-sigma,
                         self._neigy < c[1]+sigma)
        return outer(ax, ay)*1.

    def _triangle(self, c, sigma):
        """Triangular function centered in c with spread sigma."""
        triangle_x = (-abs(c[0] - self._neigx)) + sigma
        triangle_y = (-abs(c[1] - self._neigy)) + sigma
        triangle_x[triangle_x < 0] = 0.
        triangle_y[triangle_y < 0] = 0.
        return outer(triangle_x, triangle_y)

    def _cosine_distance(self, x, w):
        num = (w * x).sum(axis=2)
        denum = multiply(linalg.norm(w, axis=2), linalg.norm(x))
        return 1 - num / (denum+1e-8)

    def _euclidean_distance(self, x, w):
        """
        计算一个样本到一个神经元的距离，返回的是一个标量，欧式距离
        :param x:
        :param w:
        :return:
        """
        return linalg.norm(subtract(x, w), axis=-1)
        # subtract是减法，x-w。np.linalg.norm(求范数)axis=1表示按行向量处理，求多个行向量的范数，axis=0表示按列向量处理，求多个列向量的范数

    def _manhattan_distance(self, x, w):
        return linalg.norm(subtract(x, w), ord=1, axis=-1)

    def _chebyshev_distance(self, x, w):
        return max(subtract(x, w), axis=-1)

    def _check_iteration_number(self, num_iteration):
        if num_iteration < 1:
            raise ValueError('num_iteration must be > 1')

    def _check_input_len(self, data):
        """Checks that the data in input is of the correct shape."""
        data_len = len(data[0])
        if self._input_len != data_len:
            msg = 'Received %d features, expected %d.' % (data_len,
                                                          self._input_len)
            raise ValueError(msg)

    def winner(self, x):
        """
        获胜者：计算输入样本x的获胜神经元的坐标
        Computes the coordinates of the winning neuron for the sample x.
        """
        self._activate(x)
        return unravel_index(self._activation_map.argmin(),
                             self._activation_map.shape)

    def update(self, x, win, t, max_iteration):
        """
        神经元的权重更新：
        第一步：按照当前的迭代次数，计算当前的学习率和扩展范围
        第二步：计算每个激活神经元的学习率
        第三步：按照更新规则更新权重
        Updates the weights of the neurons.更新神经元的权重
        Parameters
        ----------
        x : np.array 当前输入向量
            Current pattern to learn.
        win : tuple 获胜的神经元的列表
            Position of the winning neuron for x (array or tuple).
        t : int  当前的迭代次数，用于计算学习率，激活区域大小
            Iteration index
        max_iteration : int 最大的迭代次数，用于计算学习率，激活区域大小
            Maximum number of training itarations.
        """
        eta = self._decay_function(self._learning_rate, t, max_iteration) # 更新学习率
        # sigma and learning rate decrease with the same rule
        sig = self._decay_function(self._sigma, t, max_iteration) # 更新激活范围
        # improves the performances
        g = self.neighborhood(win, sig)*eta # 根据获胜神经元，获取其邻域，计算邻域的学习率
        # w_new = eta * neighborhood_function * (x-w)
        self._weights += einsum('ij, ijk->ijk', g, x-self._weights)

    def quantization(self, data):
        """
        量化：返回距离数据集最近的神经元的权重，并把这个权重重复，分配给每个样本。
        Assigns a code book (weights vector of the winning neuron)
        to each sample in data.
        """
        self._check_input_len(data)
        # 所有样本与所有神经元之间的所有距离的最小值
        winners_coords = argmin(self._distance_from_weights(data), axis=1) # 获取获胜神经元的坐标
        print(winners_coords)
        return self._weights[unravel_index(winners_coords,
                                           self._weights.shape[:2])]

    def random_weights_init(self, data):
        """
        随机权重初始化：利用数据集中的样本随机初始化权重
        Initializes the weights of the SOM
        picking random samples from data.
        """
        self._check_input_len(data)
        it = nditer(self._activation_map, flags=['multi_index'])
        while not it.finished:
            rand_i = self._random_generator.randint(len(data))
            self._weights[it.multi_index] = data[rand_i]
            it.iternext()

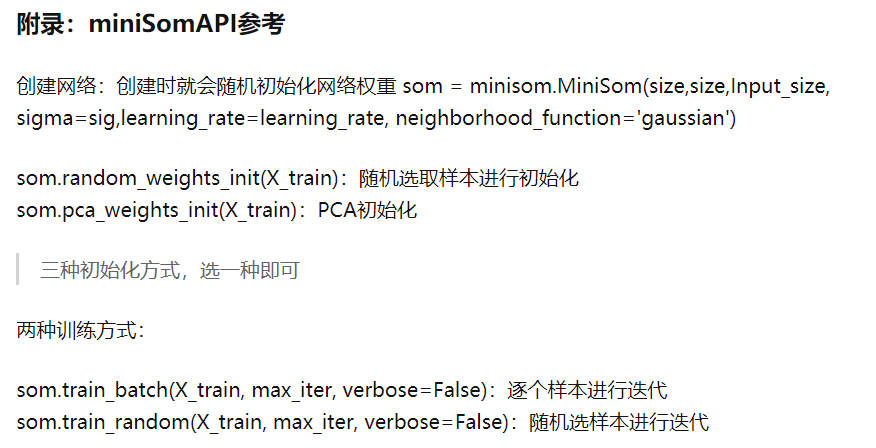

    def pca_weights_init(self, data):
        """
        PCA方法初始化权重：先计算输入样本的两个PCA主分量，用两个主分量的加权和初始化网络权重。
        该初始化方法使训练过程收敛更快
        强烈推荐在初始化权重前将样本归一化，并且在训练过程中使用相同的归一化。
        Initializes the weights to span the first two principal components.
        This initialization doesn't depend on random processes and
        makes the training process converge faster.
        It is strongly reccomended to normalize the data before initializing
        the weights and use the same normalization for the training data.
        """
        if self._input_len == 1:
            msg = 'The data needs at least 2 features for pca initialization'
            raise ValueError(msg)
        self._check_input_len(data)
        if len(self._neigx) == 1 or len(self._neigy) == 1:
            msg = 'PCA initialization inappropriate:' + \
                  'One of the dimensions of the map is 1.'
            warn(msg)
        pc_length, pc = linalg.eig(cov(transpose(data))) # np.cov计算协方差，np.linalg.eig计算矩阵的特征向量
        pc_order = argsort(-pc_length)# 特征值排序，argsort函数返回的是数组值从小到大的索引值
        for i, c1 in enumerate(linspace(-1, 1, len(self._neigx))):
            for j, c2 in enumerate(linspace(-1, 1, len(self._neigy))):
                self._weights[i, j] = c1*pc[pc_order[0]] + c2*pc[pc_order[1]]
        # 上面：pc[pc_order[0]] 表示最大特征值对应的特征向量
        #      pc[pc_order[1]] 表示第二大特征值对应的特征向量
        #      c1*pc[pc_order[0]] + c2*pc[pc_order[1]] 表示两个特征向量的加权和

    def train(self, data, num_iteration, random_order=False, verbose=False):
        """Trains the SOM.
        Parameters
        ----------
        data : np.array or list
            Data matrix.
        num_iteration : int
            Maximum number of iterations (one iteration per sample).
        random_order : bool (default=False)用以决定是否从数据集中随机采集样本训练
            If True, samples are picked in random order.
            Otherwise the samples are picked sequentially.
        verbose : bool (default=False) 用以决定是否打印迭代信息
            If True the status of the training
            will be printed at each iteration.
        """
        self._check_iteration_number(num_iteration)
        self._check_input_len(data)
        random_generator = None
        if random_order:
            random_generator = self._random_generator
        iterations = _build_iteration_indexes(len(data), num_iteration,
                                              verbose, random_generator)
        for t, iteration in enumerate(iterations):
            self.update(data[iteration], self.winner(data[iteration]),
                        t, num_iteration)
        if verbose:
            print('\n quantization error:', self.quantization_error(data))

    def train_random(self, data, num_iteration, verbose=False):
        """Trains the SOM picking samples at random from data.
        Parameters
        ----------
        data : np.array or list
            Data matrix.
        num_iteration : int
            Maximum number of iterations (one iteration per sample).
        verbose : bool (default=False)
            If True the status of the training
            will be printed at each iteration.
        """
        self.train(data, num_iteration, random_order=True, verbose=verbose)

    def train_batch(self, data, num_iteration, verbose=False):
        """
        按数据集的样本顺序训练SOM
        Trains the SOM using all the vectors in data sequentially.
        Parameters
        ----------
        data : np.array or list
            Data matrix.
        num_iteration : int
            Maximum number of iterations (one iteration per sample).
        verbose : bool (default=False)
            If True the status of the training
            will be printed at each iteration.
        """
        self.train(data, num_iteration, random_order=False, verbose=verbose)

    def distance_map(self):
        """
        权重的距离地图
        每个元素是一个神经元与它近邻之间的距离之和。
        Returns the distance map of the weights.
        Each cell is the normalised sum of the distances between
        a neuron and its neighbours. Note that this method uses
        the euclidean distance.
        """
        um = zeros((self._weights.shape[0],
                    self._weights.shape[1],
                    8))  # 2 spots more for hexagonal topology 对于六边形来说，有两个是多余的
        # 定义了一个矩形的八个邻域 以当前区域坐标为[0,0]
        ii = [[0, -1, -1, -1, 0, 1, 1, 1]]*2
        jj = [[-1, -1, 0, 1, 1, 1, 0, -1]]*2

        if self.topology == 'hexagonal':# 六边形拓扑结构
            ii = [[1, 1, 1, 0, -1, 0], [0, 1, 0, -1, -1, -1]]
            jj = [[1, 0, -1, -1, 0, 1], [1, 0, -1, -1, 0, 1]]

        # 遍历每个神经元
        for x in range(self._weights.shape[0]):
            for y in range(self._weights.shape[1]):
                w_2 = self._weights[x, y] # 提取神经元的权重
                e = y % 2 == 0   # only used on hexagonal topology # 仅仅在六边形中应用
                # 对于该神经元的第k个邻域，坐标为[i,j]
                for k, (i, j) in enumerate(zip(ii[e], jj[e])):
                    # 如果这个邻域存在/没有超出som竞争层的边界
                    if (x+i >= 0 and x+i < self._weights.shape[0] and
                            y+j >= 0 and y+j < self._weights.shape[1]):
                        w_1 = self._weights[x+i, y+j] # 获取这个邻域的权重
                        um[x, y, k] = fast_norm(w_2-w_1) # 并计算这两个神经元之间的欧式距离，

        um = um.sum(axis=2) # 将每个神经元与其相邻神经元之间的距离求累加和
        return um/um.max() # 利用最大距离归一化

    def activation_response(self, data):
        """
        记录神经元被激活的次数
        激活响应：返回一个矩阵，矩阵的第[i,j]个元素，反应第[i,j]个神经元在数据集data中被激活的次数
            Returns a matrix where the element i,j is the number of times
            that the neuron i,j have been winner.
        """
        self._check_input_len(data)
        a = zeros((self._weights.shape[0], self._weights.shape[1]))
        for x in data:
            a[self.winner(x)] += 1
        return a

    def _distance_from_weights(self, data):
        """
        返回一个矩阵：反应第i个样本与第j个神经元之间的距离（欧式距离）
        Returns a matrix d where d[i,j] is the euclidean distance between
        data[i] and the j-th weight.
        """
        input_data = array(data)
        weights_flat = self._weights.reshape(-1, self._weights.shape[2])# 把神经元的拓扑结构拉直
        input_data_sq = power(input_data, 2).sum(axis=1, keepdims=True)
        weights_flat_sq = power(weights_flat, 2).sum(axis=1, keepdims=True)
        cross_term = dot(input_data, weights_flat.T)
        return sqrt(-2 * cross_term + input_data_sq + weights_flat_sq.T)

    def quantization_error(self, data):
        """
        量化误差：计算数据集中的样本到最佳匹配神经元的距离的均值。
        最佳匹配神经元：到数据集最近的神经元
        Returns the quantization error computed as the average
        distance between each input sample and its best matching unit.
        """
        self._check_input_len(data)
        return norm(data-self.quantization(data), axis=1).mean()

    def topographic_error(self, data):
        """
        拓扑结构误差：对每个输入样本，找到最佳匹配神经元和第二最佳匹配神经元，评估他们的位置。
        当二者的位置不相邻时，把该样本统计为一个误差。
        拓扑结构误差 = 误差样本总数/所有样本总数
        如果拓扑结构误差=1，所有样本的拓扑结构都没有被保存。
        Returns the topographic error computed by finding
        the best-matching and second-best-matching neuron in the map
        for each input and then evaluating the positions.
        A sample for which these two nodes are not adjacent counts as
        an error. The topographic error is given by the
        the total number of errors divided by the total of samples.
        If the topographic error is 0, no error occurred.
        If 1, the topology was not preserved for any of the samples.
        """
        self._check_input_len(data)
        if self.topology == 'hexagonal':
            msg = 'Topographic error not implemented for hexagonal topology.'
            raise NotImplementedError(msg)
        total_neurons = prod(self._activation_map.shape) # 神经元的总个数
        if total_neurons == 1:
            warn('The topographic error is not defined for a 1-by-1 map.')
            return nan

        t = 1.42
        # b2mu: best 2 matching units
        b2mu_inds = argsort(self._distance_from_weights(data), axis=1)[:, :2]# 最大的两个神经元的索引，一维坐标
        b2my_xy = unravel_index(b2mu_inds, self._weights.shape[:2])# 最大的两个神经元的索引，二维坐标
        b2mu_x, b2mu_y = b2my_xy[0], b2my_xy[1] # b2mu_x=（x1,x2）,b2mu_y=（y1,y2）
        dxdy = hstack([diff(b2mu_x), diff(b2mu_y)]) # dxdy = [dx,dy]
        distance = norm(dxdy, axis=1) # 计算两个神经元的欧式距离
        return (distance > t).mean() #统计距离超过1.42的样本的个数，并除以样本总个数

    def win_map(self, data, return_indices=False):
        """
        赢者图：统计每个神经元收集到的样本。
               如果 return_indices=True, 那么统计每个神经元收集到的样本在数据集中的索引。
        返回一个字典：
            字典的索引是竞争神经元的坐标
            字典的内容是该神经元收集到的数据集样本。
        Returns a dictionary wm where wm[(i,j)] is a list with:
        - all the patterns that have been mapped to the position (i,j),
          if return_indices=False (default)
        - all indices of the elements that have been mapped to the
          position (i,j) if return_indices=True
        """
        self._check_input_len(data)
        winmap = defaultdict(list)
        for i, x in enumerate(data):
            winmap[self.winner(x)].append(i if return_indices else x)
        return winmap

    def labels_map(self, data, labels):
        """
        标签图：统计每个神经元收集到的样本的标签种类，及每个标签的出现频次
        返回一个双层字典wm. wm是一个字典，wm的元素wm[(i,j)]也是一个字典
        wm的索引是神经元的坐标
        wm[(i,j)]的索引是样本的标签，内容是该标签出现的频次/该标签被映射到这个神经元的次数
        Returns a dictionary wm where wm[(i,j)] is a dictionary
        that contains the number of samples from a given label
        that have been mapped in position i,j.
        ----------
        data : np.array or list
            Data matrix.
        label : np.array or list
            Labels for each sample in data.
        """
        self._check_input_len(data)
        if not len(data) == len(labels):
            raise ValueError('data and labels must have the same length.')
        winmap = defaultdict(list) # 是一个字典
        for x, l in zip(data, labels):
            winmap[self.winner(x)].append(l) # 每一个神经元是一个字典条目，name=神经元的索引，内容是这个神经元下的不同标签，是一个列表：归类到这个神经元下的样本的标签
        for position in winmap: # 遍历每一个神经元，统计分配到这个神经元下样本的个数
            winmap[position] = Counter(winmap[position]) # counter 输入一个列表，返回一个字典，字典的内容是：在列表中每个元素出现的次数
        return winmap # 是一个双层字典，存储每个神经元下收集到的不同样本的标签，并统计每个标签出现的频次


class TestMinisom(unittest.TestCase):
    """
    测试类，测试MiniSom的每个函数

    """
    def setUp(self):
        self.som = MiniSom(5, 5, 1)
        for i in range(5):
            for j in range(5):
                # checking weights normalization
                assert_almost_equal(1.0, linalg.norm(self.som._weights[i, j]))
        self.som._weights = zeros((5, 5, 1))  # fake weights
        self.som._weights[2, 3] = 5.0
        self.som._weights[1, 1] = 2.0

    def test_decay_function(self):
        assert self.som._decay_function(1., 2., 3.) == 1./(1.+2./(3./2))

    def test_fast_norm(self):
        assert fast_norm(array([1, 3])) == sqrt(1+9)

    def test_euclidean_distance(self):
        x = zeros((1, 2))
        w = ones((2, 2, 2))
        d = self.som._euclidean_distance(x, w)
        assert_array_almost_equal(d, [[1.41421356, 1.41421356],
                                      [1.41421356, 1.41421356]])

    def test_cosine_distance(self):
        x = zeros((1, 2))
        w = ones((2, 2, 2))
        d = self.som._cosine_distance(x, w)
        assert_array_almost_equal(d, [[1., 1.],
                                      [1., 1.]])

    def test_manhattan_distance(self):
        x = zeros((1, 2))
        w = ones((2, 2, 2))
        d = self.som._manhattan_distance(x, w)
        assert_array_almost_equal(d, [[2., 2.],
                                      [2., 2.]])

    def test_chebyshev_distance(self):
        x = array([1, 3])
        w = ones((2, 2, 2))
        d = self.som._chebyshev_distance(x, w)
        assert_array_almost_equal(d, [[2., 2.],
                                      [2., 2.]])

    def test_check_input_len(self):
        with self.assertRaises(ValueError):
            self.som.train_batch([[1, 2]], 1)

        with self.assertRaises(ValueError):
            self.som.random_weights_init(array([[1, 2]]))

        with self.assertRaises(ValueError):
            self.som._check_input_len(array([[1, 2]]))

        self.som._check_input_len(array([[1]]))
        self.som._check_input_len([[1]])

    def test_unavailable_neigh_function(self):
        with self.assertRaises(ValueError):
            MiniSom(5, 5, 1, neighborhood_function='boooom')

    def test_unavailable_distance_function(self):
        with self.assertRaises(ValueError):
            MiniSom(5, 5, 1, activation_distance='ridethewave')

    def test_gaussian(self):
        bell = self.som._gaussian((2, 2), 1)
        assert bell.max() == 1.0
        assert bell.argmax() == 12  # unravel(12) = (2,2)

    def test_mexican_hat(self):
        bell = self.som._mexican_hat((2, 2), 1)
        assert bell.max() == 1.0
        assert bell.argmax() == 12  # unravel(12) = (2,2)

    def test_bubble(self):
        bubble = self.som._bubble((2, 2), 1)
        assert bubble[2, 2] == 1
        assert sum(sum(bubble)) == 1

    def test_triangle(self):
        bubble = self.som._triangle((2, 2), 1)
        assert bubble[2, 2] == 1
        assert sum(sum(bubble)) == 1

    def test_win_map(self):
        winners = self.som.win_map([[5.0], [2.0]])
        assert winners[(2, 3)][0] == [5.0]
        assert winners[(1, 1)][0] == [2.0]

    def test_win_map_indices(self):
        winners = self.som.win_map([[5.0], [2.0]], return_indices=True)
        assert winners[(2, 3)] == [0]
        assert winners[(1, 1)] == [1]

    def test_labels_map(self):
        labels_map = self.som.labels_map([[5.0], [2.0]], ['a', 'b'])
        assert labels_map[(2, 3)]['a'] == 1
        assert labels_map[(1, 1)]['b'] == 1
        with self.assertRaises(ValueError):
            self.som.labels_map([[5.0]], ['a', 'b'])

    def test_activation_reponse(self):
        response = self.som.activation_response([[5.0], [2.0]])
        assert response[2, 3] == 1
        assert response[1, 1] == 1

    def test_activate(self):
        assert self.som.activate(5.0).argmin() == 13.0  # unravel(13) = (2,3)

    def test_distance_from_weights(self):
        data = arange(-5, 5).reshape(-1, 1)
        weights = self.som._weights.reshape(-1, self.som._weights.shape[2])
        distances = self.som._distance_from_weights(data)
        for i in range(len(data)):
            for j in range(len(weights)):
                assert(distances[i][j] == norm(data[i] - weights[j]))

    def test_quantization_error(self):
        assert self.som.quantization_error([[5], [2]]) == 0.0
        assert self.som.quantization_error([[4], [1]]) == 1.0

    def test_topographic_error(self):
        # 5 will have bmu_1 in (2,3) and bmu_2 in (2, 4)
        # which are in the same neighborhood
        self.som._weights[2, 4] = 6.0
        # 15 will have bmu_1 in (4, 4) and bmu_2 in (0, 0)
        # which are not in the same neighborhood
        self.som._weights[4, 4] = 15.0
        self.som._weights[0, 0] = 14.
        assert self.som.topographic_error([[5]]) == 0.0
        assert self.som.topographic_error([[15]]) == 1.0

        self.som.topology = 'hexagonal'
        with self.assertRaises(NotImplementedError):
            assert self.som.topographic_error([[5]]) == 0.0
        self.som.topology = 'rectangular'

    def test_quantization(self):
        q = self.som.quantization(array([[4], [2]]))
        assert q[0] == 5.0
        assert q[1] == 2.0

    def test_random_seed(self):
        som1 = MiniSom(5, 5, 2, sigma=1.0, learning_rate=0.5, random_seed=1)
        som2 = MiniSom(5, 5, 2, sigma=1.0, learning_rate=0.5, random_seed=1)
        # same initialization
        assert_array_almost_equal(som1._weights, som2._weights)
        data = random.rand(100, 2)
        som1 = MiniSom(5, 5, 2, sigma=1.0, learning_rate=0.5, random_seed=1)
        som1.train_random(data, 10)
        som2 = MiniSom(5, 5, 2, sigma=1.0, learning_rate=0.5, random_seed=1)
        som2.train_random(data, 10)
        # same state after training
        assert_array_almost_equal(som1._weights, som2._weights)

    def test_train_batch(self):
        som = MiniSom(5, 5, 2, sigma=1.0, learning_rate=0.5, random_seed=1)
        data = array([[4, 2], [3, 1]])
        q1 = som.quantization_error(data)
        som.train(data, 10)
        assert q1 > som.quantization_error(data)

        data = array([[1, 5], [6, 7]])
        q1 = som.quantization_error(data)
        som.train_batch(data, 10, verbose=True)
        assert q1 > som.quantization_error(data)

    def test_train_random(self):
        som = MiniSom(5, 5, 2, sigma=1.0, learning_rate=0.5, random_seed=1)
        data = array([[4, 2], [3, 1]])
        q1 = som.quantization_error(data)
        som.train(data, 10, random_order=True)
        assert q1 > som.quantization_error(data)

        data = array([[1, 5], [6, 7]])
        q1 = som.quantization_error(data)
        som.train_random(data, 10, verbose=True)
        assert q1 > som.quantization_error(data)

    def test_random_weights_init(self):
        som = MiniSom(2, 2, 2, random_seed=1)
        som.random_weights_init(array([[1.0, .0]]))
        for w in som._weights:
            assert_array_equal(w[0], array([1.0, .0]))

    def test_pca_weights_init(self):
        som = MiniSom(2, 2, 2)
        som.pca_weights_init(array([[1.,  0.], [0., 1.], [1., 0.], [0., 1.]]))
        expected = array([[[0., -1.41421356], [-1.41421356, 0.]],
                          [[1.41421356, 0.], [0., 1.41421356]]])
        assert_array_almost_equal(som._weights, expected)

    def test_distance_map(self):
        som = MiniSom(2, 2, 2, random_seed=1)
        som._weights = array([[[1.,  0.], [0., 1.]], [[1., 0.], [0., 1.]]])
        assert_array_equal(som.distance_map(), array([[1., 1.], [1., 1.]]))

        som = MiniSom(2, 2, 2, topology='hexagonal', random_seed=1)
        som._weights = array([[[1.,  0.], [0., 1.]], [[1., 0.], [0., 1.]]])
        assert_array_equal(som.distance_map(), array([[.5, 1.], [1., .5]]))

    def test_pickling(self):
        with open('som.p', 'wb') as outfile:
            pickle.dump(self.som, outfile)
        with open('som.p', 'rb') as infile:
            pickle.load(infile)
        os.remove('som.p')

import numpy as np
from minisom1 import MiniSom
import pickle

"""Initializes a Self Organizing Maps.
        A rule of thumb to set the size of the grid for a dimensionality
        reduction task is that it should contain 5*sqrt(N) neurons
        where N is the number of samples in the dataset to analyze.
        E.g. if your dataset has 150 samples, 5*sqrt(150) = 61.23
        hence a map 8-by-8 should perform well.
        Parameters
        ----------
        x : int
            x dimension of the SOM. 竞争层的X维度
        y : int
            y dimension of the SOM.竞争层的Y维度
        input_len : int          输入向量的长度
            Number of the elements of the vectors in input.
        sigma : float, optional (default=1.0) 近邻函数的扩展参数，需要与som竞争层的大小相适应，默认初始值为1，该参数随时间减小
            Spread of the neighborhood function, needs to be adequate
            to the dimensions of the map.
            (at the iteration t we have sigma(t) = sigma / (1 + t/T)
            where T is #num_iteration/2)
        learning_rate : initial learning rate 学习率，随着迭代次数减小
            (at the iteration t we have
            learning_rate(t) = learning_rate / (1 + t/T)
            where T is #num_iteration/2)
        decay_function : function (default=None) 学习率的下降函数  降低学习率与缩小扩展范围使用的是同一个函数
            Function that reduces learning_rate and sigma at each iteration
            the default function is:
                        learning_rate / (1+t/(max_iterarations/2))
            A custom decay function will need to to take in input
            three parameters in the following order:
            1. learning rate
            2. current iteration
            3. maximum number of iterations allowed
            Note that if a lambda function is used to define the decay
            MiniSom will not be pickable anymore.
        neighborhood_function : string, optional (default='gaussian') 近邻函数，定义近邻关系
            Function that weights the neighborhood of a position in the map.
            Possible values: 'gaussian', 'mexican_hat', 'bubble', 'triangle' 可用的取值包括：高斯关系，墨西哥帽子，气泡，三角形
        topology : string, optional (default='rectangular') 拓扑关系，默认是矩形关系，还可以选择六边形关系
            Topology of the map.
            Possible values: 'rectangular', 'hexagonal'
        activation_distance : string, optional (default='euclidean') 激活距离，默认采用的是欧式距离
            Distance used to activate the map.
            Possible values: 'euclidean', 'cosine', 'manhattan', 'chebyshev'
        random_seed : int, optional (default=None) 随机种子
            Random seed to use.
        """

"""数据"""
data = [[ 0.80,  0.55,  0.22,  0.03],
        [ 0.82,  0.50,  0.23,  0.03],
        [ 0.80,  0.54,  0.22,  0.03],
        [ 0.80,  0.53,  0.26,  0.03],
        [ 0.79,  0.56,  0.22,  0.03],
        [ 0.75,  0.60,  0.25,  0.03],
        [ 0.77,  0.59,  0.22,  0.03]]

"""定义网络"""
som = MiniSom(x=5, y=5, input_len=4,neighborhood_function="gaussian", sigma=2, learning_rate=0.5)
# 创建一个 5x5 的 SOM
# x: 竞争层的X维度
# y: 竞争层的y维度
# input_len: 输入层的维度
# neighborhood_function：近邻函数，可选择：'gaussian', 'mexican_hat', 'bubble', 'triangle'
# sigma： 近邻函数的参数
# topology： 拓扑关系，默认是矩形关系。候选：'euclidean', 'cosine', 'manhattan', 'chebyshev'
# decay_function : 学习率的下降函数  降低学习率与缩小扩展范围使用的是同一个函数
#                   默认：(default=None) ： learning_rate / (1+t/(max_iterarations/2))

"""训练网络"""
som.train(data, 10000) # 迭代训练10000 次

"""查看某个样本的对应的获胜神经元"""
sample = data[0]
winner_neuro_index = som.winner(sample) # 返回神经元的坐标
print(winner_neuro_index) # 打印的是被激活的神经元的索引

"""打印SOM的权重"""
# 获取所有权重
som_weights = som.get_weights()
print(som_weights)

# 获取特定索引位置的神经元的权重,是一个与输入向量等长的向量
i,j = winner_neuro_index[0],winner_neuro_index[1]
neuro_weight = som_weights[i,j,:]
print(neuro_weight)

"""
得到距离数据集最近的神经元的权重，并把这个权重重复若干次（参数中样本的个数），输出。
"""
data_som_weights = som.quantization(data[0:3])
print(data_som_weights)


"""模型的保存与加载"""
with open('som.p', 'wb') as outfile:
    pickle.dump(som, outfile)

with open('som.p', 'rb') as infile:
    som = pickle.load(infile)
