服务器搭建（01）Gerrit服务器搭建 & 内网访问

说明：本次服务器的搭建主要是在window上VMWare虚拟机上搭建一个gerrit服务器作为测试，了解gerrit服务器搭建的整个流程，最后确保 gerrit 可以在本机的ubuntu虚拟机上可以正常运行。

1 基本环境搭建与配置（针对ubuntu18.04）：

Linux基本软件的安装：

1	$sudo apt-get install vim tree net-tools ssh curl

jdk相关的安装（这里是直接安装jdk8）：

1	$sudo apt-get install openjdk-8-jdk openjdk-8-jre

git 和repo 相关工具的安装：

1	$sudo apt-get install git gitk git-svn repo

apache 服务器的安装：

1	$sudo apt-get install apache2*

2 gerrit 服务器安装与配置（ gerrit-3.0.0.war版本）

下载安装包 gerrit-3.0.0.war

官方网站链接：https://www.gerritcodereview.com/

下载3.0.0版本的直接网站链接：https://www.gerritcodereview.com/3.0.html

从官网下载 gerrit 包 gerrit-3.0.0.war后执行下面一组命令：

1
2
3
4

$cd /home/wangdaosheng
$mkdir gerrit
$cd gerrit
$java -jar gerrit-3.0.0.war init -d review_site

执行后界面显示如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143

wangdaosheng@ubuntu:~/gerrit$ java -jar gerrit-3.0.0.war init -d review_site
Using secure store: com.google.gerrit.server.securestore.DefaultSecureStore
[2020-05-18 03:55:14,036] [main] INFO com.google.gerrit.server.config.GerritServerConfigProvider : No /home/wangdaosheng/gerrit/review_site/etc/gerrit.config; assuming defaults

*** Gerrit Code Review 3.0.0
***

Create '/home/wangdaosheng/gerrit/review_site' [Y/n]? y

*** Git Repositories
***

Location of Git repositories [git]: /home/wangdaosheng/gerrit/source/

*** Index
***

Type [lucene/?]:

*** User Authentication
***

Authentication method [openid/?]: HTTP
Get username from custom HTTP header [y/N]? n
SSO logout URL :
Enable signed push support [y/N]? y

*** Review Labels
***

Install Verified label [y/N]? y

*** Email Delivery
***

SMTP server hostname [localhost]: smtp.qq.com
SMTP server port [(default)]: 465
SMTP encryption [none/?]: SSL
SMTP username [wangdaosheng]: [email protected]
[email protected]'s password :
confirm password :
error: Passwords did not match; try again
[email protected]'s password :
confirm password :

*** Container Process
***

Run as [wangdaosheng]:
Java runtime [/usr/lib/jvm/java-8-openjdk-amd64/jre]:
Copy gerrit-3.0.0.war to review_site/bin/gerrit.war [Y/n]? y
Copying gerrit-3.0.0.war to review_site/bin/gerrit.war

*** SSH Daemon
***

Listen on address [*]: 127.0.0.1
Listen on port [29418]:
Generating SSH host key ... rsa... ed25519... ecdsa 256... ecdsa 384... ecdsa 521... done

*** HTTP Daemon
***

Behind reverse proxy [y/N]? y
Proxy uses SSL (https://) [y/N]? n
Subdirectory on proxy server [/]:
Listen on address [*]: 127.0.0.1
Listen on port [8081]:
Canonical URL [http://127.0.0.1/]:

*** Cache
***

*** Plugins
***

Installing plugins.
Install plugin codemirror-editor version v3.0.0 [y/N]? y
Installed codemirror-editor v3.0.0
Install plugin commit-message-length-validator version v3.0.0 [y/N]? y
Installed commit-message-length-validator v3.0.0
Install plugin delete-project version v3.0.0 [y/N]? y
Installed delete-project v3.0.0
Install plugin download-commands version v3.0.0 [y/N]? y
Installed download-commands v3.0.0
Install plugin gitiles version v3.0.0 [y/N]? y
Installed gitiles v3.0.0
Install plugin hooks version v3.0.0 [y/N]? y
Installed hooks v3.0.0
Install plugin plugin-manager version v3.0.0 [y/N]? y
Installed plugin-manager v3.0.0
Install plugin replication version v3.0.0 [y/N]? y
Installed replication v3.0.0
Install plugin reviewnotes version v3.0.0 [y/N]? y
Installed reviewnotes v3.0.0
Install plugin singleusergroup version v3.0.0 [y/N]? y
Installed singleusergroup v3.0.0
Install plugin webhooks version v3.0.0 [y/N]? y
Installed webhooks v3.0.0
Initializing plugins.

Initialized /home/wangdaosheng/gerrit/review_site
Reindexing projects: 100% (2/2) with: reindex --site-path review_site --threads 1 --index projects
Reindexed 2 documents in projects index in 0.2s (9.9/s)
Warning: InterruptedException
java.lang.InterruptedException
at java.lang.Object.wait(Native Method)
at java.lang.Thread.join(Thread.java:1260)
at org.h2.util.MathUtils.getSecureRandom(MathUtils.java:105)
at org.h2.util.MathUtils.secureRandomBytes(MathUtils.java:307)
at org.h2.store.FileLock.setUniqueId(FileLock.java:315)
at org.h2.store.FileLock.lockFile(FileLock.java:345)
at org.h2.store.FileLock.lock(FileLock.java:136)
at org.h2.engine.Database.open(Database.java:622)
at org.h2.engine.Database.openDatabase(Database.java:260)
at org.h2.engine.Database.<init>(Database.java:254)
at org.h2.engine.Engine.openSession(Engine.java:57)
at org.h2.engine.Engine.openSession(Engine.java:164)
at org.h2.engine.Engine.createSessionAndValidate(Engine.java:142)
at org.h2.engine.Engine.createSession(Engine.java:125)
at org.h2.engine.Engine.createSession(Engine.java:27)
at org.h2.engine.SessionRemote.connectEmbeddedOrServer(SessionRemote.java:331)
at org.h2.jdbc.JdbcConnection.<init>(JdbcConnection.java:107)
at org.h2.jdbc.JdbcConnection.<init>(JdbcConnection.java:91)
at org.h2.Driver.connect(Driver.java:74)
at com.google.gerrit.server.cache.h2.H2CacheImpl$SqlHandle.<init>(H2CacheImpl.java:634)
at com.google.gerrit.server.cache.h2.H2CacheImpl$SqlStore.acquire(H2CacheImpl.java:602)
at com.google.gerrit.server.cache.h2.H2CacheImpl$SqlStore.buildBloomFilter(H2CacheImpl.java:328)
at com.google.gerrit.server.cache.h2.H2CacheImpl$SqlStore.open(H2CacheImpl.java:300)
at com.google.gerrit.server.cache.h2.H2CacheImpl.start(H2CacheImpl.java:188)
at com.google.gerrit.server.logging.LoggingContextAwareRunnable.run(LoggingContextAwareRunnable.java:83)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
Executing /home/wangdaosheng/gerrit/review_site/bin/gerrit.sh start
Starting Gerrit Code Review: WARNING: Could not adjust Gerrit's process for the kernel's out-of-memory killer.
This may be caused by /home/wangdaosheng/gerrit/review_site/bin/gerrit.sh not being run as root.
Consider changing the OOM score adjustment manually for Gerrit's PID= with e.g.:
echo '-1000' | sudo tee /proc//oom_score_adj
OK
Waiting for server on 127.0.0.1:80 ... OK
Opening http://127.0.0.1/#/admin/projects/ ...OK

配置完成后，重新编辑对应的配置文件/home/wangdaosheng/gerrit/review_site/etc/gerrit.config，编辑后如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

[gerrit]
basePath = /home/wangdaosheng/gerrit/source/
canonicalWebUrl = http://127.0.0.1:8082/
serverId = 28adb296-dfbf-41a2-af1e-816263a4fb20
[container]
javaOptions = "-Dflogger.backend_factory=com.google.common.flogger.backend.log4j.Log4jBackendFactory#getInstance"
javaOptions = "-Dflogger.logging_context=com.google.gerrit.server.logging.LoggingContext#getInstance"
user = wangdaosheng
javaHome = /usr/lib/jvm/java-8-openjdk-amd64/jre
[index]
type = LUCENE
[auth]
type = HTTP
[receive]
enableSignedPush = true
[sendemail]
smtpServer = smtp.qq.com
smtpServerPort = 465
smtpEncryption = SSL
smtpUser = *********@qq.com
[sshd]
listenAddress = 127.0.0.1:29418
[httpd]
listenUrl = proxy-http://127.0.0.1:8081/
[cache]
directory = cache

确保以下命令是可以执行成功的。命令操作集如下所示：

1
2
3
4
5
6
7

$cd /home/wangdaosheng/gerrit/review_site/bin
$sudo ./gerrit.sh start
Starting Gerrit Code Review: OK

$cd /home/wangdaosheng/gerrit/review_site/bin
$sudo ./gerrit.sh stop
Stopping Gerrit Code Review: OK

接下来开始配置添加gerrit登录用户，命令集操作如下所示：

1
2
3
4
5

$htpasswd -cb /home/wangdaosheng/gerrit/pwd admin admin
$htpasswd -b /home/wangdaosheng/gerrit/pwd user1 123456
$cat /home/wangdaosheng/gerrit/pwd
admin:$apr1$z5TbBtlP$MrJw5n7qz5RF0UvS6uFT/1
user1:$apr1$pcvyS9ZK$Yu7EG40b3Dq2X5qzQ1xPC.

创建Apache的config文件httpd.conf，在/etc/apache2目录下创建一个配置文件httpd.conf，编写文件如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

<VirtualHost *:8082>
ServerName localhost
ProxyRequests Off
ProxyVia Off
ProxyPreserveHost On
<Proxy *:8082>
Order deny,allow
Allow from all
</Proxy>
<Location "/login">
AuthType Basic
AuthName "Gerrit Code Review"
Require valid-user
AuthBasicProvider file
AuthUserFile /home/wangdaosheng/gerrit/pwd
</Location>
AllowEncodedSlashes On
ProxyPass / http://127.0.0.1:8081/
</VirtualHost>

同时修改对应的port.conf文件，修改后如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

# If you just change the port or add more ports here, you will likely also
# have to change the VirtualHost statement in
# /etc/apache2/sites-enabled/000-default.conf

NameVirtualHost *:80 #新添加
NameVirtualHost *:8082 #新添加
Listen 80
Listen 8082 #新添加

<IfModule ssl_module>
Listen 443
</IfModule>

<IfModule mod_gnutls.c>
Listen 443
</IfModule>

# vim: syntax=apache ts=4 sw=4 sts=4 sr noet

接下来在apache的配置文件 /etc/apache2/apache2.conf 中加入httpd.conf，这样才能使得httpd.conf生效，否则怎么调试都无意义，/etc/apache2/apache2.conf 文件如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

# This is the main Apache server configuration file. It contains the
# configuration directives that give the server its instructions.
# See http://httpd.apache.org/docs/2.4/ for detailed information about
# the directives and /usr/share/doc/apache2/README.Debian about Debian specific
# hints.
#
#
# Summary of how the Apache 2 configuration works in Debian:
# The Apache 2 web server configuration in Debian is quite different to
# upstream's suggested way to configure the web server. This is because Debian's
# default Apache2 installation attempts to make adding and removing modules,
# virtual hosts, and extra configuration directives as flexible as possible, in
# order to make automating the changes and administering the server as easy as
# possible.

# It is split into several files forming the configuration hierarchy outlined
# below, all located in the /etc/apache2/ directory:
#
# /etc/apache2/
# |-- apache2.conf
# | `-- ports.conf
# |-- mods-enabled
# | |-- *.load
# | `-- *.conf
# |-- conf-enabled
# | `-- *.conf
# `-- sites-enabled
# `-- *.conf
#
# ...
...
Include httpd.conf

接下来执行以下命令后重新启动apache服务器，命令集如下所示：

1
2
3
4
5
6

$sudo a2enmod proxy
$sudo a2enmod rewrite
$sudo a2enmod ssl
$sudo a2enmod proxy_balancer
$sudo a2enmod proxy_http
$systemctl restart apache2

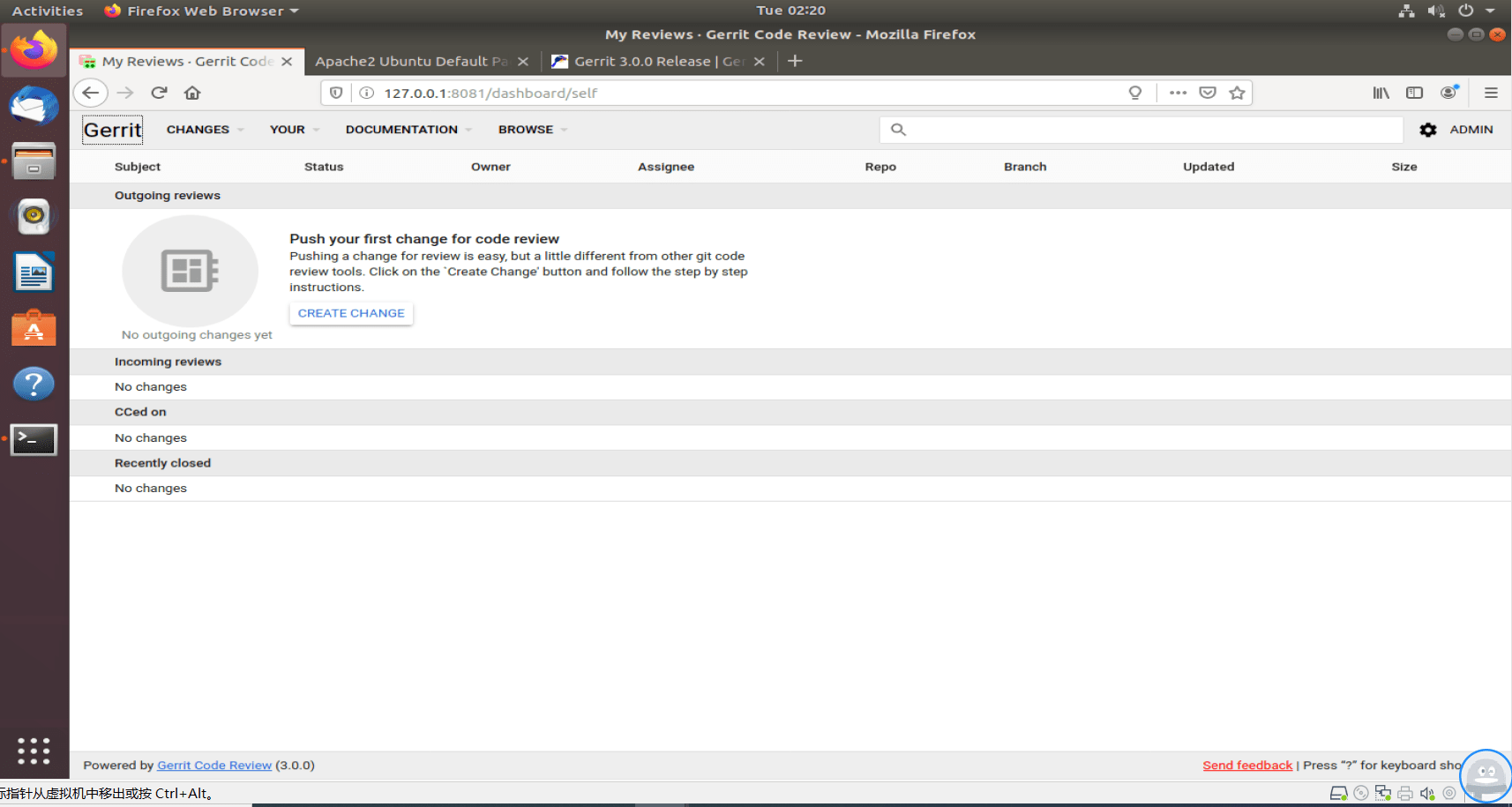

到这里见证奇迹的时刻到了，打开浏览器，输入：127.0.0.1:8081，回车后显示如下：

接下来为了方便启动，我们把这些零散的命令封装成脚本 start.sh，如下所示：

1
2
3
4
5
6
7
8
9
10
11

#!/bin/bash
#开始配置并重启apache服务器
sudo a2enmod proxy
sudo a2enmod rewrite
sudo a2enmod ssl
sudo a2enmod proxy_balancer
sudo a2enmod proxy_http
systemctl restart apache2
#确保gerrit.sh 没有启动之后再进行start操作
sudo {$HOME}/gerrit/review_site/bin/gerrit.sh stop
sudo {$HOME}/gerrit/review_site/bin/gerrit.sh start

至此，gerrit服务器本地就可以访问了。调试了接近两天的时间，终于把这个调试通了。下一步，我们再创建一个虚拟机，作为客户端来访问我们新创建的gerrit服务器，而这个时候我们就需要对配置做一些改变了。

3 gerrit 服务器配置文件变更，可内网访问

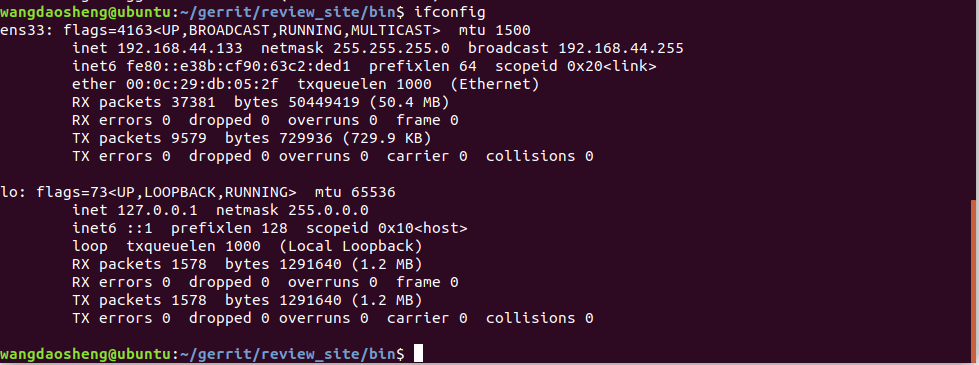

首先我们改变对外的ip相关配置，这里执行ifconfig 获得对应的ip地址，如下所示：

也就是这里的ip地址是 192.168.44.133。于是开始变更我们之前的代理相关的配置。

@1 重新编辑对应的配置文件/home/wangdaosheng/gerrit/review_site/etc/gerrit.config。

编辑前信息如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

编辑后信息如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

[gerrit]
basePath = /home/wangdaosheng/gerrit/source/
canonicalWebUrl = http://192.168.44.133:8082/
serverId = 28adb296-dfbf-41a2-af1e-816263a4fb20
[container]
javaOptions = "-Dflogger.backend_factory=com.google.common.flogger.backend.log4j.Log4jBackendFactory#getInstance"
javaOptions = "-Dflogger.logging_context=com.google.gerrit.server.logging.LoggingContext#getInstance"
user = wangdaosheng
javaHome = /usr/lib/jvm/java-8-openjdk-amd64/jre
[index]
type = LUCENE
[auth]
type = HTTP
[receive]
enableSignedPush = true
[sendemail]
smtpServer = smtp.qq.com
smtpServerPort = 465
smtpEncryption = SSL
smtpUser = *********@qq.com
[sshd]
listenAddress = 192.168.44.133:29418
[httpd]
listenUrl = proxy-http://192.168.44.133:8081/
[cache]
directory = cache

@2 重新编辑Apache的配置文件httpd.conf。

编辑前信息如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

编辑后信息如下所示：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

<VirtualHost *:8082>
ServerName 192.168.44.133
ProxyRequests Off
ProxyVia Off
ProxyPreserveHost On
<Proxy *:8082>
Order deny,allow
Allow from all
</Proxy>
<Location "/login">
AuthType Basic
AuthName "Gerrit Code Review"
Require valid-user
AuthBasicProvider file
AuthUserFile /home/wangdaosheng/gerrit/pwd
</Location>
AllowEncodedSlashes On
ProxyPass / http://192.168.44.133:8081/
</VirtualHost>

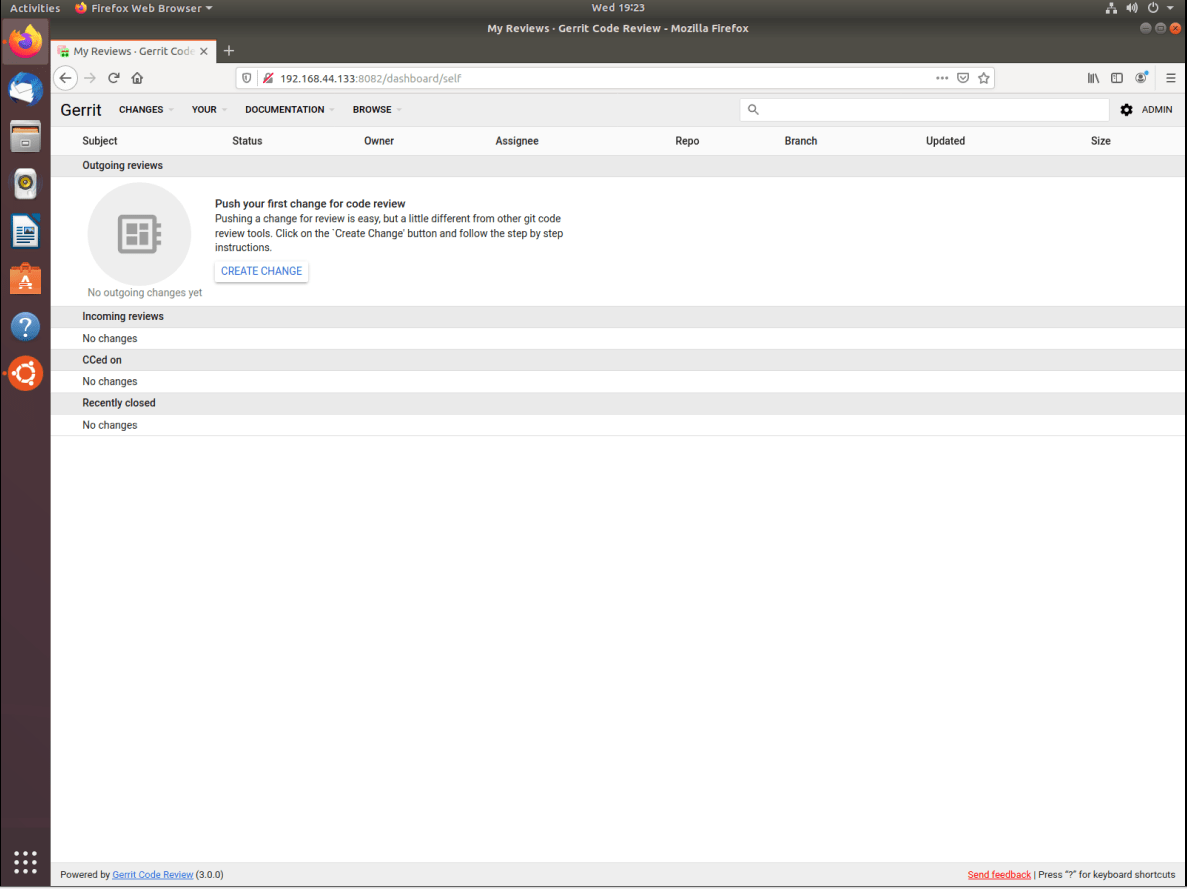

到此就把配置变更完了，接下来我们再重新启动下前面的start.sh，这一次通过新建立的ubuntu虚拟机来访问我们建立的gerrit服务器，跑通后效果如下：

至此，我们的gerrit服务器就完成了第一步，彻底走通了。下一步我们要开始使用gerrit服务器来做事儿了。建立仓库，上传、下载代码这个功能是最基本的，接下来我就针对于此，开始进行测试，同时根据实际情况继续调整。
