关于python：在matplotlib中定义颜色图的中点

Defining the midpoint of a colormap in matplotlib

我想设置色彩图的中间点，即我的数据从-5到10，我希望零成为中间点。我认为做到这一点的方法是归一化归一化并使用规范，但是我没有找到任何示例，我也不清楚我到底要实现什么。

我知道这对游戏来说太晚了，但是我只是经历了这个过程，并提出了一个解决方案，该解决方案可能不如将子类标准化归一化，但更简单。我认为最好在此分享以供后代使用。

功能

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

import numpy as np
import matplotlib
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import AxesGrid

def shiftedColorMap(cmap, start=0, midpoint=0.5, stop=1.0, name='shiftedcmap'):
'''
Function to offset the"center" of a colormap. Useful for
data with a negative min and positive max and you want the
middle of the colormap's dynamic range to be at zero.

Input
-----
cmap : The matplotlib colormap to be altered
start : Offset from lowest point in the colormap's range.
Defaults to 0.0 (no lower offset). Should be between
0.0 and `midpoint`.
midpoint : The new center of the colormap. Defaults to
0.5 (no shift). Should be between 0.0 and 1.0. In
general, this should be 1 - vmax / (vmax + abs(vmin))
For example if your data range from -15.0 to +5.0 and
you want the center of the colormap at 0.0, `midpoint`
should be set to 1 - 5/(5 + 15)) or 0.75
stop : Offset from highest point in the colormap's range.
Defaults to 1.0 (no upper offset). Should be between
`midpoint` and 1.0.
'''
cdict = {
'red': [],
'green': [],
'blue': [],
'alpha': []
}

# regular index to compute the colors
reg_index = np.linspace(start, stop, 257)

# shifted index to match the data
shift_index = np.hstack([
np.linspace(0.0, midpoint, 128, endpoint=False),
np.linspace(midpoint, 1.0, 129, endpoint=True)
])

for ri, si in zip(reg_index, shift_index):
r, g, b, a = cmap(ri)

cdict['red'].append((si, r, r))
cdict['green'].append((si, g, g))
cdict['blue'].append((si, b, b))
cdict['alpha'].append((si, a, a))

newcmap = matplotlib.colors.LinearSegmentedColormap(name, cdict)
plt.register_cmap(cmap=newcmap)

return newcmap

一个例子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

biased_data = np.random.random_integers(low=-15, high=5, size=(37,37))

orig_cmap = matplotlib.cm.coolwarm
shifted_cmap = shiftedColorMap(orig_cmap, midpoint=0.75, name='shifted')
shrunk_cmap = shiftedColorMap(orig_cmap, start=0.15, midpoint=0.75, stop=0.85, name='shrunk')

fig = plt.figure(figsize=(6,6))
grid = AxesGrid(fig, 111, nrows_ncols=(2, 2), axes_pad=0.5,
label_mode="1", share_all=True,
cbar_location="right", cbar_mode="each",
cbar_size="7%", cbar_pad="2%")

# normal cmap
im0 = grid[0].imshow(biased_data, interpolation="none", cmap=orig_cmap)
grid.cbar_axes[0].colorbar(im0)
grid[0].set_title('Default behavior (hard to see bias)', fontsize=8)

im1 = grid[1].imshow(biased_data, interpolation="none", cmap=orig_cmap, vmax=15, vmin=-15)
grid.cbar_axes[1].colorbar(im1)
grid[1].set_title('Centered zero manually,\
but lost upper end of dynamic range', fontsize=8)

im2 = grid[2].imshow(biased_data, interpolation="none", cmap=shifted_cmap)
grid.cbar_axes[2].colorbar(im2)
grid[2].set_title('Recentered cmap with function', fontsize=8)

im3 = grid[3].imshow(biased_data, interpolation="none", cmap=shrunk_cmap)
grid.cbar_axes[3].colorbar(im3)
grid[3].set_title('Recentered cmap with function\
and shrunk range', fontsize=8)

for ax in grid:
ax.set_yticks([])
ax.set_xticks([])

示例结果：

enter image description here

相关讨论

这是子类归一化的解决方案。使用它

1 2	norm = MidPointNorm(midpoint=3) imshow(X, norm=norm)

这是课程：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

import numpy as np
from numpy import ma
from matplotlib import cbook
from matplotlib.colors import Normalize

class MidPointNorm(Normalize):
def __init__(self, midpoint=0, vmin=None, vmax=None, clip=False):
Normalize.__init__(self,vmin, vmax, clip)
self.midpoint = midpoint

def __call__(self, value, clip=None):
if clip is None:
clip = self.clip

result, is_scalar = self.process_value(value)

self.autoscale_None(result)
vmin, vmax, midpoint = self.vmin, self.vmax, self.midpoint

if not (vmin < midpoint < vmax):
raise ValueError("midpoint must be between maxvalue and minvalue.")
elif vmin == vmax:
result.fill(0) # Or should it be all masked? Or 0.5?
elif vmin > vmax:
raise ValueError("maxvalue must be bigger than minvalue")
else:
vmin = float(vmin)
vmax = float(vmax)
if clip:
mask = ma.getmask(result)
result = ma.array(np.clip(result.filled(vmax), vmin, vmax),
mask=mask)

# ma division is very slow; we can take a shortcut
resdat = result.data

#First scale to -1 to 1 range, than to from 0 to 1.
resdat -= midpoint
resdat[resdat>0] /= abs(vmax - midpoint)
resdat[resdat<0] /= abs(vmin - midpoint)

resdat /= 2.
resdat += 0.5
result = ma.array(resdat, mask=result.mask, copy=False)

if is_scalar:
result = result[0]
return result

def inverse(self, value):
if not self.scaled():
raise ValueError("Not invertible until scaled")
vmin, vmax, midpoint = self.vmin, self.vmax, self.midpoint

if cbook.iterable(value):
val = ma.asarray(value)
val = 2 * (val-0.5)
val[val>0] *= abs(vmax - midpoint)
val[val<0] *= abs(vmin - midpoint)
val += midpoint
return val
else:
val = 2 * (value - 0.5)
if val < 0:
return val*abs(vmin-midpoint) + midpoint
else:
return val*abs(vmax-midpoint) + midpoint

相关讨论

仅对imshow使用vmin和vmax参数(假设您正在处理图像数据)而不是子类化matplotlib.colors.Normalize是最简单的。

例如。

1
2
3
4
5
6
7
8
9
10
11

import numpy as np
import matplotlib.pyplot as plt

data = np.random.random((10,10))
# Make the data range from about -5 to 10
data = 10 / 0.75 * (data - 0.25)

plt.imshow(data, vmin=-10, vmax=10)
plt.colorbar()

plt.show()

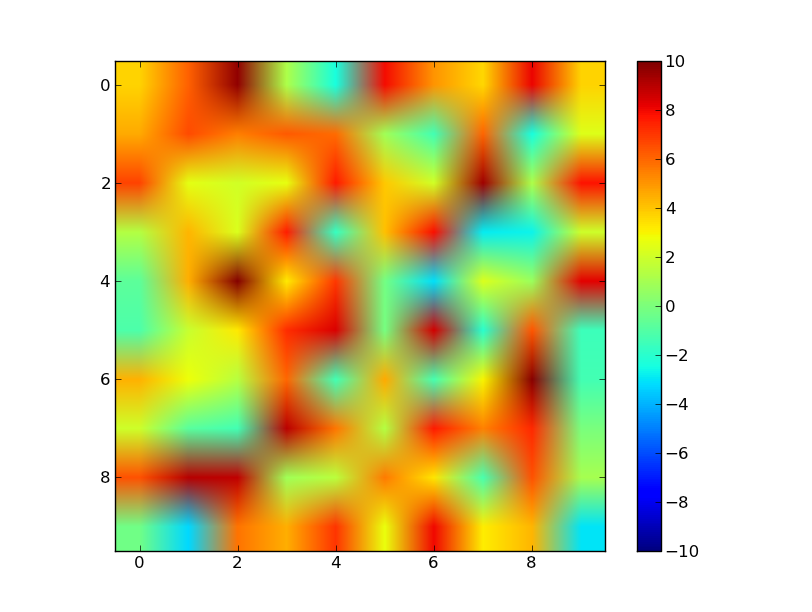

enter image description here

相关讨论

该解决方案的灵感来自此页面上同名的类

在这里，我创建一个Normalize的子类，然后是一个最小的示例。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

import scipy as sp
import matplotlib as mpl
import matplotlib.pyplot as plt

class MidpointNormalize(mpl.colors.Normalize):
def __init__(self, vmin, vmax, midpoint=0, clip=False):
self.midpoint = midpoint
mpl.colors.Normalize.__init__(self, vmin, vmax, clip)

def __call__(self, value, clip=None):
normalized_min = max(0, 1 / 2 * (1 - abs((self.midpoint - self.vmin) / (self.midpoint - self.vmax))))
normalized_max = min(1, 1 / 2 * (1 + abs((self.vmax - self.midpoint) / (self.midpoint - self.vmin))))
normalized_mid = 0.5
x, y = [self.vmin, self.midpoint, self.vmax], [normalized_min, normalized_mid, normalized_max]
return sp.ma.masked_array(sp.interp(value, x, y))

vals = sp.array([[-5., 0], [5, 10]])
vmin = vals.min()
vmax = vals.max()

norm = MidpointNormalize(vmin=vmin, vmax=vmax, midpoint=0)
cmap = 'RdBu_r'

plt.imshow(vals, cmap=cmap, norm=norm)
plt.colorbar()
plt.show()

结果： pic-1

同样的例子只有正数据vals = sp.array([[1., 3], [6, 10]])

pic-2

总结一下-该规范具有以下特性：

中点将获得中间颜色。
上限和下限范围将以相同的方式重新缩放，因此使用适当的色图，颜色饱和度将对应于距中点的距离。
颜色栏将仅显示图片上显示的颜色。
即使vmin大于midpoint，似乎也可以正常工作(尽管未测试所有边缘情况)。

相关讨论

请注意，在matplotlib 3.1版中，添加了DivergingNorm类。我认为它涵盖了您的用例。
可以这样使用：

1 2	from matplotlib import colors colors.DivergingNorm(vmin=-4000., vcenter=0., vmax=10000)

在matplotlib 3.2中，该类已重命名为TwoSlopesNorm

相关讨论

不知道您是否还在寻找答案。对我而言，尝试将Normalize子类化是不成功的。因此，我专注于手动创建新的数据集，刻度和刻度标签，以获得我认为您想要的效果。

我在matplotlib中找到了scale模块，该模块具有用于通过'syslog'规则转换线图的类，因此我将其用于转换数据。然后，我缩放数据以使其从0变为1(Normalize通常这样做)，但是我缩放正数与缩放负数的方式有所不同。这是因为您的vmax和vmin可能不相同，所以.5-> 1可能会覆盖比.5-> 0更大的正数范围，而负数范围会更大。对我来说，创建一个例程来计算刻度和标签值比较容易。

下面是代码和示例图。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.mpl as mpl
import matplotlib.scale as scale

NDATA = 50
VMAX=10
VMIN=-5
LINTHRESH=1e-4

def makeTickLables(vmin,vmax,linthresh):
"""
make two lists, one for the tick positions, and one for the labels
at those positions. The number and placement of positive labels is
different from the negative labels.
"""
nvpos = int(np.log10(vmax))-int(np.log10(linthresh))
nvneg = int(np.log10(np.abs(vmin)))-int(np.log10(linthresh))+1
ticks = []
labels = []
lavmin = (np.log10(np.abs(vmin)))
lvmax = (np.log10(np.abs(vmax)))
llinthres = int(np.log10(linthresh))
# f(x) = mx+b
# f(llinthres) = .5
# f(lavmin) = 0
m = .5/float(llinthres-lavmin)
b = (.5-llinthres*m-lavmin*m)/2
for itick in range(nvneg):
labels.append(-1*float(pow(10,itick+llinthres)))
ticks.append((b+(itick+llinthres)*m))
# add vmin tick
labels.append(vmin)
ticks.append(b+(lavmin)*m)

# f(x) = mx+b
# f(llinthres) = .5
# f(lvmax) = 1
m = .5/float(lvmax-llinthres)
b = m*(lvmax-2*llinthres)
for itick in range(1,nvpos):
labels.append(float(pow(10,itick+llinthres)))
ticks.append((b+(itick+llinthres)*m))
# add vmax tick
labels.append(vmax)
ticks.append(b+(lvmax)*m)

return ticks,labels

data = (VMAX-VMIN)*np.random.random((NDATA,NDATA))+VMIN

# define a scaler object that can transform to 'symlog'
scaler = scale.SymmetricalLogScale.SymmetricalLogTransform(10,LINTHRESH)
datas = scaler.transform(data)

# scale datas so that 0 is at .5
# so two seperate scales, one for positive and one for negative
data2 = np.where(np.greater(data,0),
.75+.25*datas/np.log10(VMAX),
.25+.25*(datas)/np.log10(np.abs(VMIN))
)

ticks,labels=makeTickLables(VMIN,VMAX,LINTHRESH)

cmap = mpl.cm.jet
fig = plt.figure()
ax = fig.add_subplot(111)
im = ax.imshow(data2,cmap=cmap,vmin=0,vmax=1)
cbar = plt.colorbar(im,ticks=ticks)
cbar.ax.set_yticklabels(labels)

fig.savefig('twoscales.png')

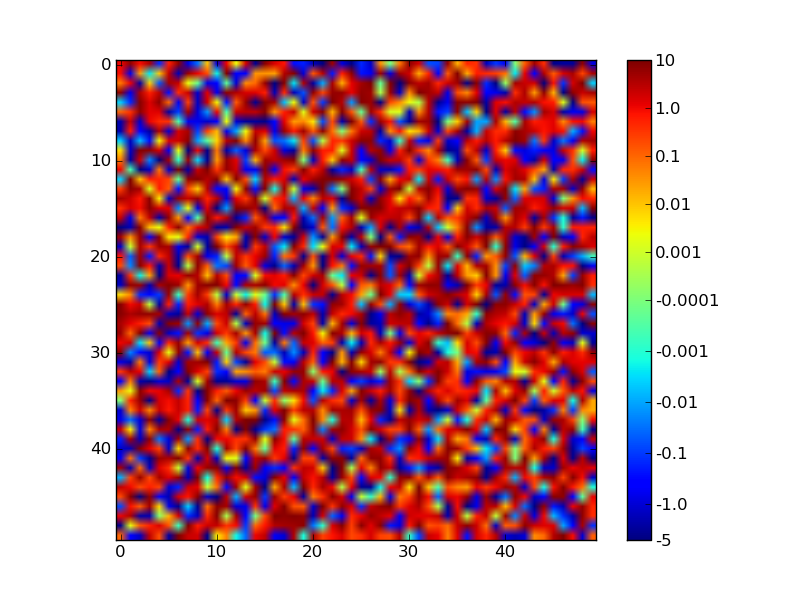

vmax=10,vmin=-5 and linthresh=1e-4

随意调整脚本顶部的"常量"(例如vmax)以确认其性能良好。

相关讨论

我使用了Paul H的出色回答，但遇到了一个问题，因为我的一些数据范围从负到正，而其他数据范围从0到正或从负到0；无论哪种情况，我都希望将0着色为白色(我正在使用的色图的中点)。使用现有的实现，如果您的midpoint值等于1或0，则不会覆盖原始映射。您可以在下图中看到它：

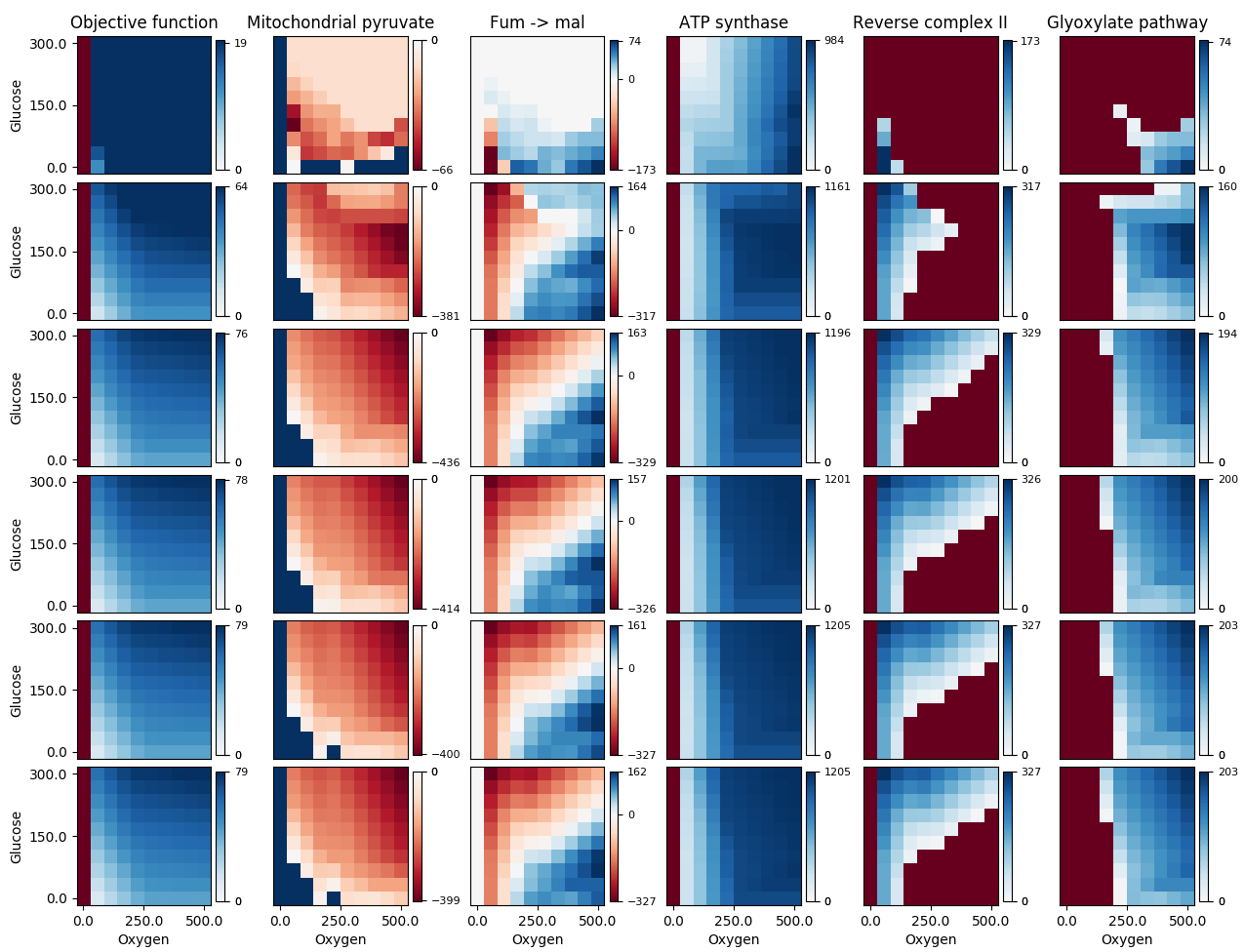

graphs before edit
第三列看起来正确，但是第二列中的深蓝色区域和其余列中的深红色区域都应该是白色的(它们的数据值实际上为0)。使用我的修复程序可以使我：

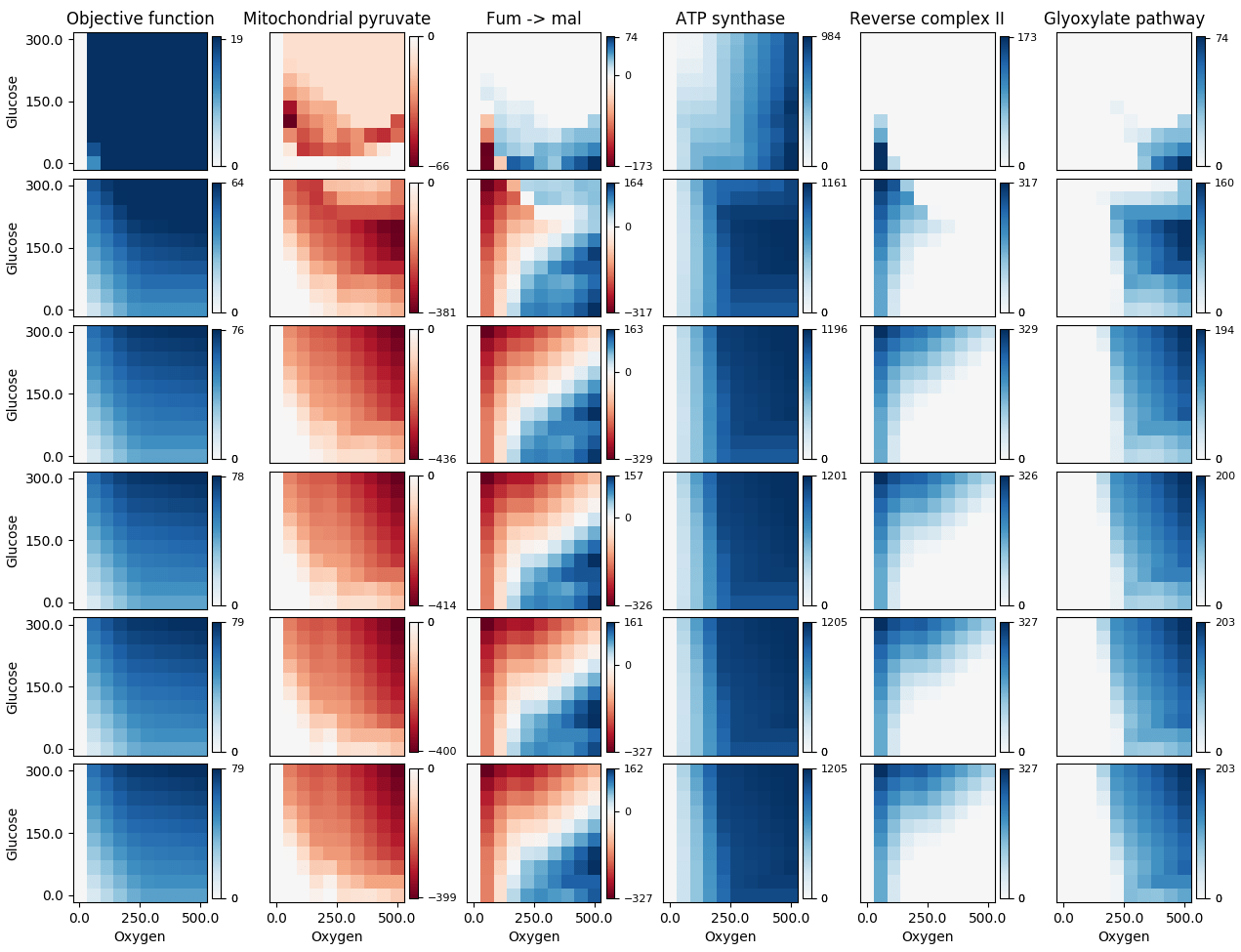

graphs after edit
我的功能与Paul H的功能基本相同，我的编辑在for循环的开始处：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

def shiftedColorMap(cmap, min_val, max_val, name):
'''Function to offset the"center" of a colormap. Useful for data with a negative min and positive max and you want the middle of the colormap's dynamic range to be at zero. Adapted from https://stackoverflow.com/questions/7404116/defining-the-midpoint-of-a-colormap-in-matplotlib

Input
-----
cmap : The matplotlib colormap to be altered.
start : Offset from lowest point in the colormap's range.
Defaults to 0.0 (no lower ofset). Should be between
0.0 and `midpoint`.
midpoint : The new center of the colormap. Defaults to
0.5 (no shift). Should be between 0.0 and 1.0. In
general, this should be 1 - vmax/(vmax + abs(vmin))
For example if your data range from -15.0 to +5.0 and
you want the center of the colormap at 0.0, `midpoint`
should be set to 1 - 5/(5 + 15)) or 0.75
stop : Offset from highets point in the colormap's range.
Defaults to 1.0 (no upper ofset). Should be between
`midpoint` and 1.0.'''
epsilon = 0.001
start, stop = 0.0, 1.0
min_val, max_val = min(0.0, min_val), max(0.0, max_val) # Edit #2
midpoint = 1.0 - max_val/(max_val + abs(min_val))
cdict = {'red': [], 'green': [], 'blue': [], 'alpha': []}
# regular index to compute the colors
reg_index = np.linspace(start, stop, 257)
# shifted index to match the data
shift_index = np.hstack([np.linspace(0.0, midpoint, 128, endpoint=False), np.linspace(midpoint, 1.0, 129, endpoint=True)])
for ri, si in zip(reg_index, shift_index):
if abs(si - midpoint) < epsilon:
r, g, b, a = cmap(0.5) # 0.5 = original midpoint.
else:
r, g, b, a = cmap(ri)
cdict['red'].append((si, r, r))
cdict['green'].append((si, g, g))
cdict['blue'].append((si, b, b))
cdict['alpha'].append((si, a, a))
newcmap = matplotlib.colors.LinearSegmentedColormap(name, cdict)
plt.register_cmap(cmap=newcmap)
return newcmap

编辑：当我的某些数据从较小的正值到较大的正值不等时，我又遇到了类似的问题，其中非常低的值被着色为红色而不是白色。我通过在上面的代码中添加第Edit #2行来修复它。

相关讨论

如果您不介意计算vmin，vmax和零之间的比率，则这是一个非常基本的线性映射，从蓝色到白色再到红色，根据z的比例设置白色：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

def colormap(z):
"""custom colourmap for map plots"""

cdict1 = {'red': ((0.0, 0.0, 0.0),
(z, 1.0, 1.0),
(1.0, 1.0, 1.0)),
'green': ((0.0, 0.0, 0.0),
(z, 1.0, 1.0),
(1.0, 0.0, 0.0)),
'blue': ((0.0, 1.0, 1.0),
(z, 1.0, 1.0),
(1.0, 0.0, 0.0))
}

return LinearSegmentedColormap('BlueRed1', cdict1)

cdict格式非常简单：行是要创建的渐变中的点：第一个条目是x值(沿着渐变从0到1的比率)，第二个是上一段的结束值，并且第三个是下一个片段的起始值-如果要平滑渐变，则后两个总是相同的。请参阅文档以获取更多详细信息。

相关讨论

我有一个类似的问题，但是我希望最高的值是全红色，但切掉蓝色的低值，这使得它看起来像是彩色条的底部被切掉了。这对我有用(包括可选的透明度)：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

def shift_zero_bwr_colormap(z: float, transparent: bool = True):
"""shifted bwr colormap"""
if (z < 0) or (z > 1):
raise ValueError('z must be between 0 and 1')

cdict1 = {'red': ((0.0, max(-2*z+1, 0), max(-2*z+1, 0)),
(z, 1.0, 1.0),
(1.0, 1.0, 1.0)),

'green': ((0.0, max(-2*z+1, 0), max(-2*z+1, 0)),
(z, 1.0, 1.0),
(1.0, max(2*z-1,0), max(2*z-1,0))),

'blue': ((0.0, 1.0, 1.0),
(z, 1.0, 1.0),
(1.0, max(2*z-1,0), max(2*z-1,0))),
}
if transparent:
cdict1['alpha'] = ((0.0, 1-max(-2*z+1, 0), 1-max(-2*z+1, 0)),
(z, 0.0, 0.0),
(1.0, 1-max(2*z-1,0), 1-max(2*z-1,0)))

return LinearSegmentedColormap('shifted_rwb', cdict1)

cmap = shift_zero_bwr_colormap(.3)

x = np.arange(0, np.pi, 0.1)
y = np.arange(0, 2*np.pi, 0.1)
X, Y = np.meshgrid(x, y)
Z = np.cos(X) * np.sin(Y) * 5 + 5
plt.plot([0, 10*np.pi], [0, 20*np.pi], color='c', lw=20, zorder=-3)
plt.imshow(Z, interpolation='nearest', origin='lower', cmap=cmap)
plt.colorbar()
