如何在Linux上检查CPU和硬盘温度


How to Check CPU And Hard Disk Temperature on Linux

如果您想检查硬件运行状况，例如CPU温度，硬盘温度，风扇速度等。 我建议您使用lm_sensors和hddtemp。

lm_sensors(Linux监视传感器)是一个免费的开源应用程序，它提供用于监视温度，电压和风扇的工具和驱动程序。

它是一个CLI实用程序，如果您正在寻找替代工具。 我建议您使用s-tui：Stress Terminal UI是用于监视计算机的终端UI。

传感器用于显示所有传感器芯片的当前读数。

sensor -s用于设置配置文件中指定的所有限制。

sensors –bus-list用于生成适合配置文件的总线语句。

sensors-detect是一个交互式程序，它将引导您完成系统扫描各种硬件监视芯片或传感器的过程，这些程序由libsensors支持，或更常见的是由lm_sensors工具套件支持。

sensor-detect将按顺序查找以下设备：

  • 嵌入在超级I / O芯片中的传感器。

  • 通过ISA I / O端口访问的硬件监视芯片。

  • 硬件监视芯片可通过SMBus或更常见的系统上的任何I2C总线访问。

    • hddtemp将通过阅读支持此功能的驱动器上的自我监控分析和报告技术(S.M.A.R.T.)信息来为您提供硬盘驱动器的温度。

    仅现代硬盘驱动器具有温度传感器。 hddtemp支持阅读S.M.A.R.T. 来自SCSI驱动器的信息也是如此。hddtemp可以用作简单的命令行工具或守护程序。

    这些工具提供了一些基本的命令行实用程序，用于监视这些设备。 此外，它还可以帮助您找出系统上有缺陷的硬件组件。

    如何在Linux中安装lm_sensor和hddtemp

    在Linux中有多种安装lm_sensor和hddtemp的方法，具体取决于您使用的Linux发行版。

    大多数Linux发行版官方存储库中都提供预构建的软件包，因此，请使用适当的发行版Package Manager进行安装。

    对于Fedora系统，请使用DNF命令安装TLP。

    1
    $ sudo dnf install lm-sensors hddtemp

    对于Debian/Ubuntu系统，请使用APT-GET命令或APT命令安装TLP。

    1
    $ sudo apt install lm-sensors hddtemp

    对于基于Arch Linux的系统，请使用Pacman命令安装TLP。

    1
    $ sudo pacman -S lm-sensors hddtemp

    对于RHEL/CentOS系统，请使用YUM命令安装TLP。

    1
    $ sudo yum install lm-sensors hddtemp

    对于openSUSE Leap系统，请使用Zypper命令安装TLP。

    1
    $ sudo zypper sensors hddtemp

    如何在Linux中配置lm传感器

    安装后，运行以下命令在Linux中配置lm-sensors。 在系统上配置光传感器时，它会提示您多次确认，并且对所有人简单地回答"是"。

    sensors-detect将生成/etc/conf.d/lm_sensors配置文件，该文件由lm_sensors.service使用，并定义要在引导时加载的内核模块。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    $ sudo sensors-detect

    # sensors-detect revision $Revision$
    # System: LENOVO 80NV [Lenovo ideapad Y700-15ISK] (laptop)
    # Board: LENOVO Allsparks 5A
    # Kernel: 4.19.6-1-MANJARO x86_64
    # Processor: Intel(R) Core(TM) i7-6700HQ CPU @ 2.60GHz (6/94/3)

    This program will help you determine which kernel modules you need
    to load to use lm_sensors most effectively. It is generally safe
    and recommended to accept the default answers to all questions,
    unless you know what you're doing.

    Some south bridges, CPUs or memory controllers contain embedded sensors.
    Do you want to scan for them? This is totally safe. (YES/no): YES
    Module cpuid loaded successfully.
    Silicon Integrated Systems SIS5595...                       No
    VIA VT82C686 Integrated Sensors...                          No
    VIA VT8231 Integrated Sensors...                            No
    AMD K8 thermal sensors...                                   No
    AMD Family 10h thermal sensors...                           No
    AMD Family 11h thermal sensors...                           No
    AMD Family 12h and 14h thermal sensors...                   No
    AMD Family 15h thermal sensors...                           No
    AMD Family 16h thermal sensors...                           No
    AMD Family 17h thermal sensors...                           No
    AMD Family 15h power sensors...                             No
    AMD Family 16h power sensors...                             No
    Intel digital thermal sensor...                             Success!
        (driver `coretemp'    )
    Intel AMB FB-DIMM thermal sensor...                         No
    Intel 5500/5520/X58 thermal sensor...                       No
    VIA C7 thermal sensor...                                    No
    VIA Nano thermal sensor...                                  No

    Some Super I/O chips contain embedded sensors. We have to write to
    standard I/O ports to probe them. This is usually safe.
    Do you want to scan for Super I/O sensors? (YES/no): YES
    Probing for Super-I/O at 0x2e/0x2f
    Trying family `National Semiconductor/ITE'...               No
    Trying family `SMSC'    ...                                     No
    Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
    Trying family `ITE'    ...                                      No
    Probing for Super-I/O at 0x4e/0x4f
    Trying family `National Semiconductor/ITE'...               Yes
    Found unknown chip with ID 0x8371

    Some hardware monitoring chips are accessible through the ISA I/O ports.
    We have to write to arbitrary I/O ports to probe them. This is usually
    safe though. Yes, you do have ISA I/O ports even if you do not have any
    ISA slots! Do you want to scan the ISA I/O ports? (YES/no): YES
    Probing for `National Semiconductor LM78'     at 0x290...       No
    Probing for `National Semiconductor LM79' at 0x290...       No
    Probing for `Winbond W83781D'     at 0x290...                   No
    Probing for `Winbond W83782D' at 0x290...                   No

    Lastly, we can probe the I2C/SMBus adapters for connected hardware
    monitoring devices. This is the most risky part, and while it works
    reasonably well on most systems, it has been reported to cause trouble
    on some systems.
    Do you want to probe the I2C/SMBus adapters now? (YES/no): YES
    Using driver `i2c-i801'     for device 0000:00:1f.4: Sunrise Point-H (PCH)
    Module i2c-dev loaded successfully.

    Next adapter: SMBus I801 adapter at 6040 (i2c-0)
    Do you want to scan it? (YES/no/selectively): YES

    Next adapter: i915 gmbus dpc (i2c-1)
    Do you want to scan it? (yes/NO/selectively): YES

    Next adapter: i915 gmbus dpb (i2c-2)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: i915 gmbus dpd (i2c-3)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: DPDDC-A (i2c-4)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0000 (i2c-5)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0001 (i2c-6)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0002 (i2c-7)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0005 (i2c-8)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0006 (i2c-9)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0007 (i2c-10)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0008 (i2c-11)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-bus-0009 (i2c-12)
    Do you want to scan it? (yes/NO/selectively): yes

    Next adapter: nvkm-0000:01:00.0-aux-000a (i2c-13)
    Do you want to scan it? (yes/NO/selectively): yes
    Client found at address 0x18
    Probing for `Analog Devices ADM1021'...                     No
    Probing for `Analog Devices ADM1021A/ADM1023'    ...            No
    Probing for `Maxim MAX1617'...                              No
    Probing for `Maxim MAX1617A'    ...                             No
    Probing for `Maxim MAX1668'...                              No
    Probing for `Maxim MAX1805'    ...                              No
    Probing for `Maxim MAX1989'...                              No
    .
    .
    Probing for `Fintek F75121R/F75122R/RG (VID+GPIO)'    ...       No
    Probing for `Fintek F75111R/RG/N (GPIO)'...                 No
    Probing for `ITE IT8201R/IT8203R/IT8206R/IT8266R'    ...        No
    Client found at address 0x77
    Probing for `Asus Mozart-2'...                              No


    Now follows a summary of the probes I have just done.
    Just press ENTER to continue:

    Driver `coretemp'    :
      * Chip `Intel digital thermal sensor' (confidence: 9)

    Do you want to generate /etc/conf.d/lm_sensors? (YES/no): YES
    Created symlink /etc/systemd/system/multi-user.target.wants/lm_sensors.service → /usr/lib/systemd/system/lm_sensors.service.
    Unloading i2c-dev... OK
    Unloading cpuid... OK

    执行以下命令，查看CPU温度。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    $ sensors

    nouveau-pci-0100
    Adapter: PCI adapter
    GPU core:     +0.60 V  (min =  +0.60 V, max =  +1.20 V)
    temp1:         -0.0°C  (high = +95.0°C, hyst =  +3.0°C)
                           (crit = +105.0°C, hyst =  +5.0°C)
                           (emerg = +135.0°C, hyst =  +5.0°C)

    coretemp-isa-0000
    Adapter: ISA adapter
    Package id 0:  +35.0°C  (high = +100.0°C, crit = +100.0°C)
    Core 0:        +33.0°C  (high = +100.0°C, crit = +100.0°C)
    Core 1:        +35.0°C  (high = +100.0°C, crit = +100.0°C)
    Core 2:        +33.0°C  (high = +100.0°C, crit = +100.0°C)
    Core 3:        +32.0°C  (high = +100.0°C, crit = +100.0°C)

    打印华氏温度而不是摄氏温度。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    $ sensors -f

    nouveau-pci-0100
    Adapter: PCI adapter
    GPU core:     +0.60 V  (min =  +0.60 V, max =  +1.20 V)
    temp1:        +32.0°F  (high = +203.0°F, hyst = +37.4°F)
                           (crit = +221.0°F, hyst = +41.0°F)
                           (emerg = +275.0°F, hyst = +41.0°F)

    coretemp-isa-0000
    Adapter: ISA adapter
    Package id 0:  +96.8°F  (high = +212.0°F, crit = +212.0°F)
    Core 0:        +95.0°F  (high = +212.0°F, crit = +212.0°F)
    Core 1:        +95.0°F  (high = +212.0°F, crit = +212.0°F)
    Core 2:        +91.4°F  (high = +212.0°F, crit = +212.0°F)
    Core 3:        +91.4°F  (high = +212.0°F, crit = +212.0°F)

    显示硬盘温度。

    1
    2
    $ sudo hddtemp /dev/sda2
    /dev/sda2: WDC WD10SPCX-24HWST1: 32°C

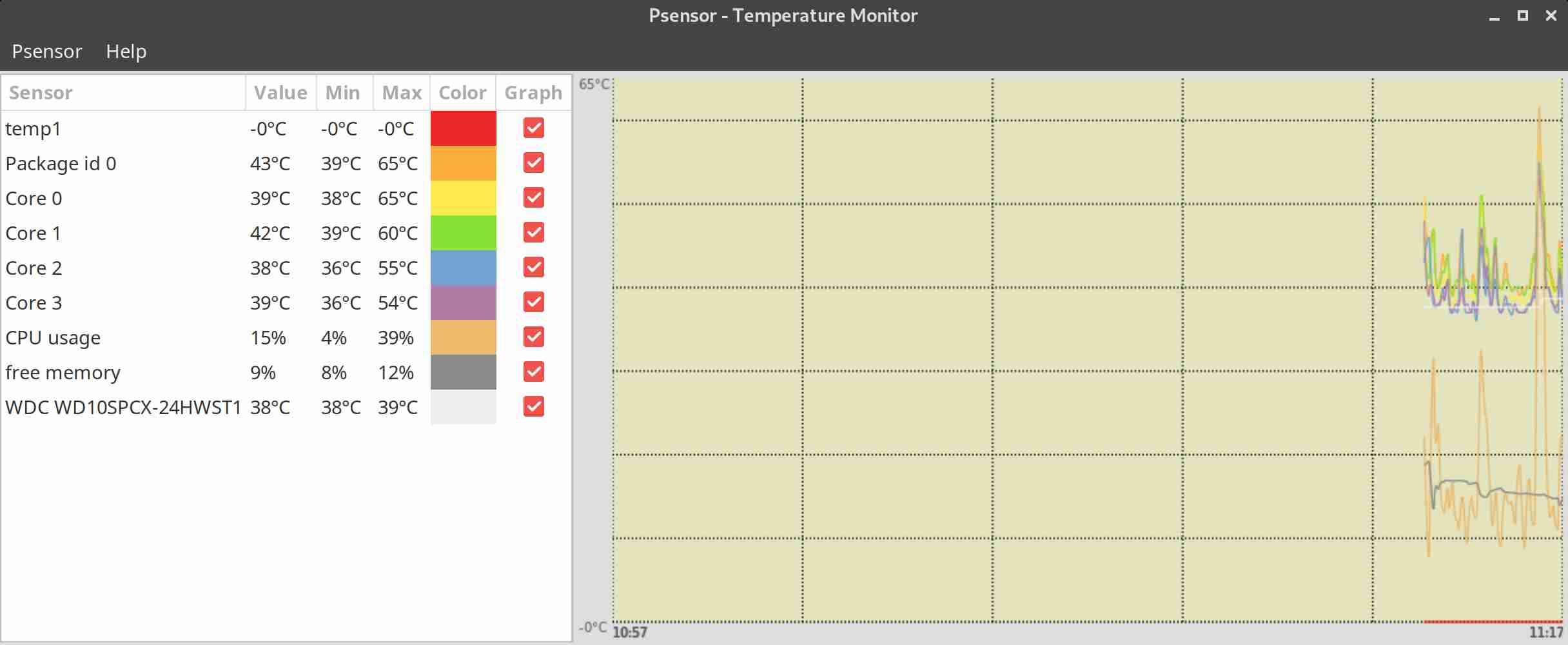

    在Linux中安装Psensor

    psensor是Linux的图形硬件温度监视器。 该应用程序设计为简单易用。 CPU和内存消耗不大。

    它可以监视：

  • 主板和CPU传感器(使用流明传感器)的温度。

  • NVidia GPU的温度(使用XNVCtrl)。

  • ATI / AMD GPU的温度(在官方发行版本存储库中未启用，请参见有关启用其支持的说明)。

  • 硬盘驱动器的温度(使用hddtemp或libatasmart)。

  • 风扇的转速(使用流明传感器)。

  • CPU使用率(自0.6.2.10起并使用Gtop2)。

    • width=
